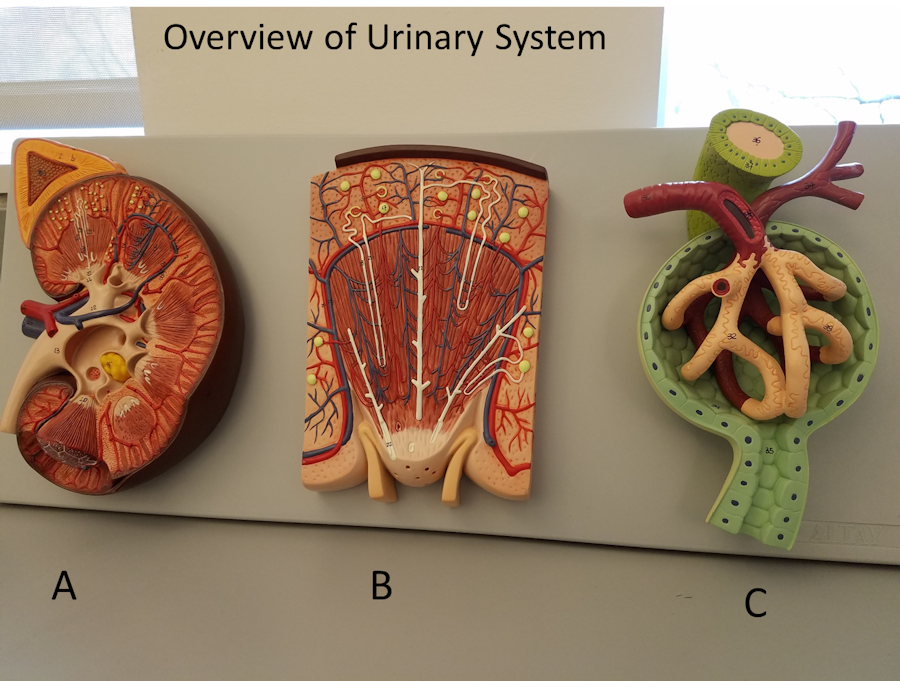

Kidney Quiz by Tom McGee | Apr 2, 2025 | 0 comments Welcome to your Kidney Quiz Overview of the Urinary System Please answer questions related to the image above. Which item indicates the kidney? A B C None Which item indicates the glomerulus? C B A None Which item indicates the nephron? C A B None 1 out of 8 Overview of the Urinary System part 2 Answer the following questions. Which of these indicates the adrenal gland? 2 3 1 None Which of these indicates the ureter? 2 1 3 None Which of these indicates the renal capsule? 2 1 3 None 2 out of 8 Overview of the Urinary System part 3 Please answer the following. Identify the structure labeled 1 Cortex Medulla Nephron None Identify the structure labeled 2 Nephron Medulla Cortex None Identify the structure labeled 3 Bowman's capsule Glomerulus Nephron None Identify the structure labeled 4 Glomerulus Bowman's capsule Nephron None 3 out of 8 The Kidney & Adrenal Gland Answer the following questions related to the image above. Identify the structure labeled 1 Adrenal medulla Renal cortex Renal medulla Adrenal cortex None Identify the structure labeled 2 Adrenal medulla Renal cortex Renal medulla Adrenal cortex None Identify the structure labeled 3 Adrenal cortex Adrenal medulla Renal cortex Renal medulla None Identify the structure labeled 4 Adrenal cortex Renal medulla Renal cortex Adrenal medulla None 4 out of 8 Kidney - Frontal Section Answer the questions based on the image above. Identify the structure labeled 1 Nephron Renal medulla Renal corpuscles Renal cortex None Identify the structure labeled 2 Renal medulla Nephron Renal corpuscles Renal cortex None Kidney - Frontal Section image 2 Answer the questions based on the image above. Identify the structure labeled 1 Renal pyramid Renal medulla Renal column Renal corpuscles None Identify the structure labeled 2 Renal pyramid Renal column Renal medulla Renal corpuscles None Identify the structure labeled 3 Renal medulla Renal papilla Renal pyramid Renal corpuscles None Kidney - Frontal Section image 3 Answer the questions based on the image above. Identify the structure labeled 1 Renal pyramid Ureter Minor calyx Renal pelvis None Identify the structure labeled 2 Minor calyx Ureter Renal pelvis Renal pyramid None Identify the structure labeled 3 Major calyx Renal pelvis Minor calyx Ureter None Identify the structure labeled 4 Major calyx Renal pelvis Ureter Minor calyx None 5 out of 8 Blood Vessels of the Kidney Answer the questions based on the image above. Identify the structure labeled 1 Renal pyramid Cortical radiating artery Nephron Renal Medulla None Identify the structure labeled 2 Renal artery Renal vein Renal pyramid Interlobar artery None Identify the structure labeled 3 Interlobar artery Renal artery Renal corpuscles Renal vein None Identify the structure labeled 4 Arcuate artery/vein Cortical radiating artery Renal medulla Interlobar artery None Identify the structure labeled 5 Interlobar artery Renal pyramid Arcuate artery/vein Cortical radiating artery None Identify the structure labeled 6 Interlobar artery Cortical radiating artery Arcuate artery/vein Renal pyramid None 6 out of 8 Kidney structures - part 1 Answer the questions based on the image above. Identify the structure labeled 1 Renal corpuscle Collecting duct Papillary duct Papilla None Identify the structure labeled 2 Papilla Papillary duct Renal corpuscle Collecting duct None Identify the structure labeled 3 Papillary duct Collecting duct Renal corpuscle Papilla None Identify the structure labeled 4 Renal corpuscle Collecting duct Papillary duct Papilla None Kidney structures - part 2 Answer the questions based on the image above. Identify the structure labeled 1 Arcuate artery Arcuate vein Interlobar artery Interlobar vein None Identify the structure labeled 2 Interlobar vein Interlobar artery Arcuate artery Arcuate vein None Identify the structure labeled 3 Arcuate artery Arcuate vein Interlobar vein Interlobar artery None Identify the structure labeled 4 Interlobar vein Interlobar artery Arcuate vein Arcuate artery None Identify the structure labeled 5 Cortical radiate vein Arcuate vein Arcuate artery Cortical radiate artery None Identify the structure labeled 6 Cortical radiate artery Arcuate vein Arcuate artery Cortical radiate vein None Kidney structures - part 3 Answer the questions based on the image above. Identify the structure labeled 1 Descending limb Proximal convoluted tubule Glomerulus Renal corpuscle None Identify the structure labeled 2 Proximal convoluted tubule Descending limb Distal convoluted tubule Glomerulus None Identify the structure labeled 3 Proximal convoluted tubule Renal corpuscle Descending limb Glomerulus None Identify the structure labeled 4 Proximal convoluted tubule Renal corpuscle Glomerulus Descending limb None Kidney structures - part 4 Answer questions for the image above. Identify the structure labeled 1 Ascending limb Distal convoluted tubule Descending limb Proximal convoluted tubule None Identify the structure labeled 2 Distal convoluted tubule Proximal convoluted tubule Descending limb Ascending limb None Identify the structure labeled 3 Descending limb Loop of Henle Ascending limb Proximal convoluted tubule None 7 out of 8 Juxtaglomerular apparatus (JGA) - part 1 Answer questions based on the image above. Identify the structure labeled 1 Efferent arteriole Proximal convoluted tubule Afferent arteriole Distal convoluted tubule None Identify the structure labeled 2 Efferent arteriole Afferent arteriole Distal convoluted tubule Proximal convoluted tubule None Identify the structure labeled 3 Descending Limb Efferent arteriole Glomerulus Afferent arteriole None Identify the structure labeled 4 Glomerulus Efferent arteriole Afferent arteriole Proximate convoluted tubule None Juxtaglomerular apparatus (JGA) - part 2 Answer questions based on the image above. Identify the structure labeled 1 Capsular space Visceral layer Proximal convoluted tubule Parietal layer None Identify the structure labeled 2 Proximal convoluted tubule Parietal layer Visceral layer Capsular space None Identify the structure labeled 3 Proximal convoluted tubule Visceral layer Parietal layer Capsular space None Identify the structure labeled 4 Parietal layer Visceral layer Capsular space Proximal convoluted tubule None Juxtaglomerular apparatus (JGA) - part 3 Answer questions based on the image above. Identify the structure labeled 1 Proximal convoluted tubule Macular densa Juxtaglomerular cells Podocytes None Identify the structure labeled 2 Podocytes Macular densa Proximal convoluted tubule Juxtaglomerular cells None Identify the structure labeled 3 Proximal convoluted tubule Juxtaglomerular cells Macular densa Podocytes None 8 out of 8 Time's up Submit a Comment Cancel replyYour email address will not be published. Required fields are marked *Comment * Name * Email * Website Save my name, email, and website in this browser for the next time I comment. Δ
